한국어 한국어DGBL-B
RONWIN
Control card is the necessary accessories of motor driven roller, which is not only provide power supply to the roller, but also adjust the roller speed, rotation direction in positive and negative and control roller start and stop, etc. Many pieces of control card can be connected to be controlled by PLC to realize intelligent control.
Main Functions of B Type
Custom quick plug-roller drive second connection
Two wire system positive and negative control
Speed regulation with 16-speed digital knob
0-10V analog voltage stepless speed regulation
Speed closed-loop support
Non-inductive operation support
Quick start time is adjustable
Stop deceleration time is adjustable
EBS brake support
Abnormal alarm output
Double LED status indicator
Two-stage speed can be customized (not
compatible with stepless speed regulation.
NPN and PNP is optional

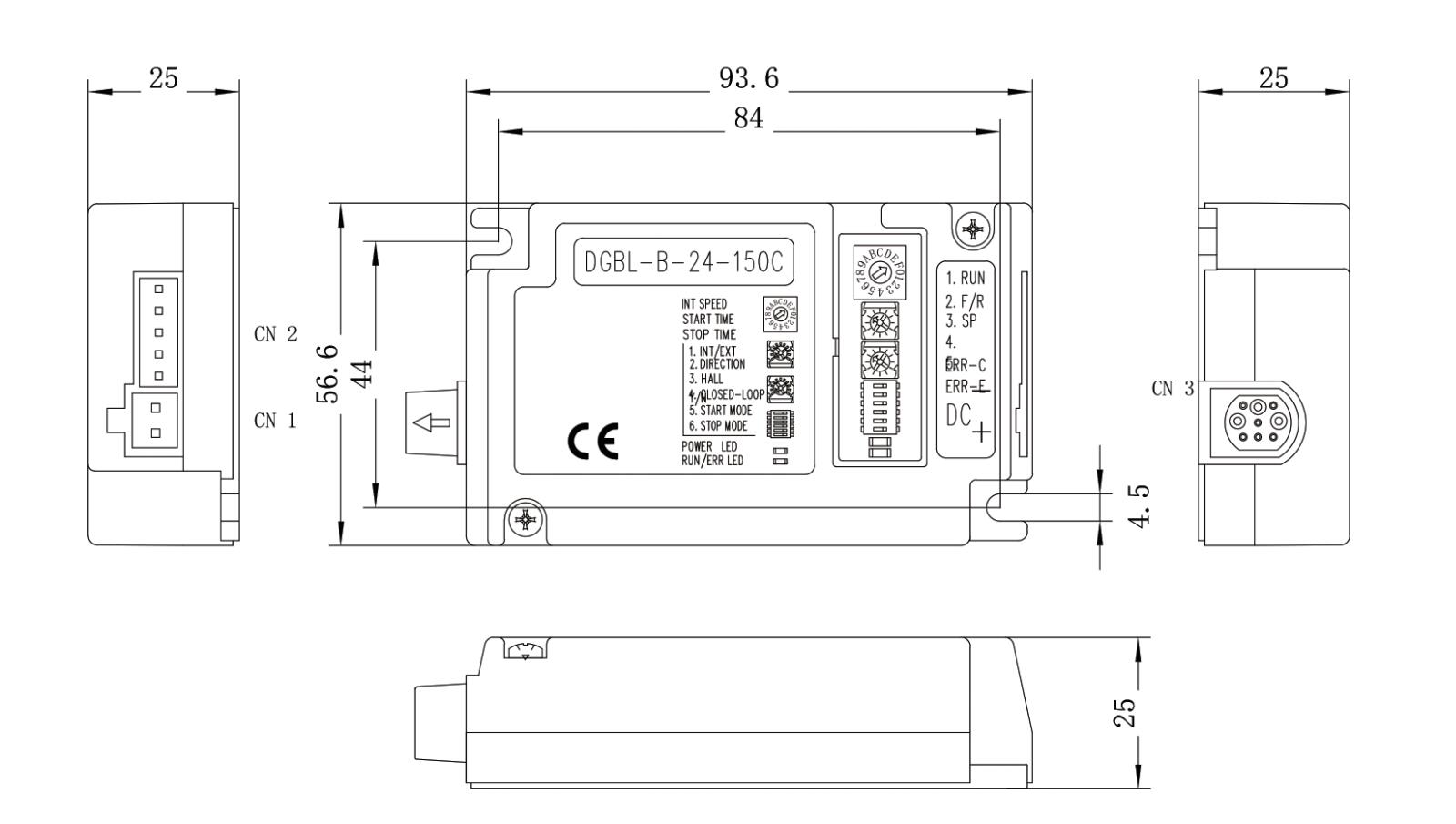

Structure & Mounting Dimensions
